Standing Seam Cladding &
Roofing
SYSTEMS

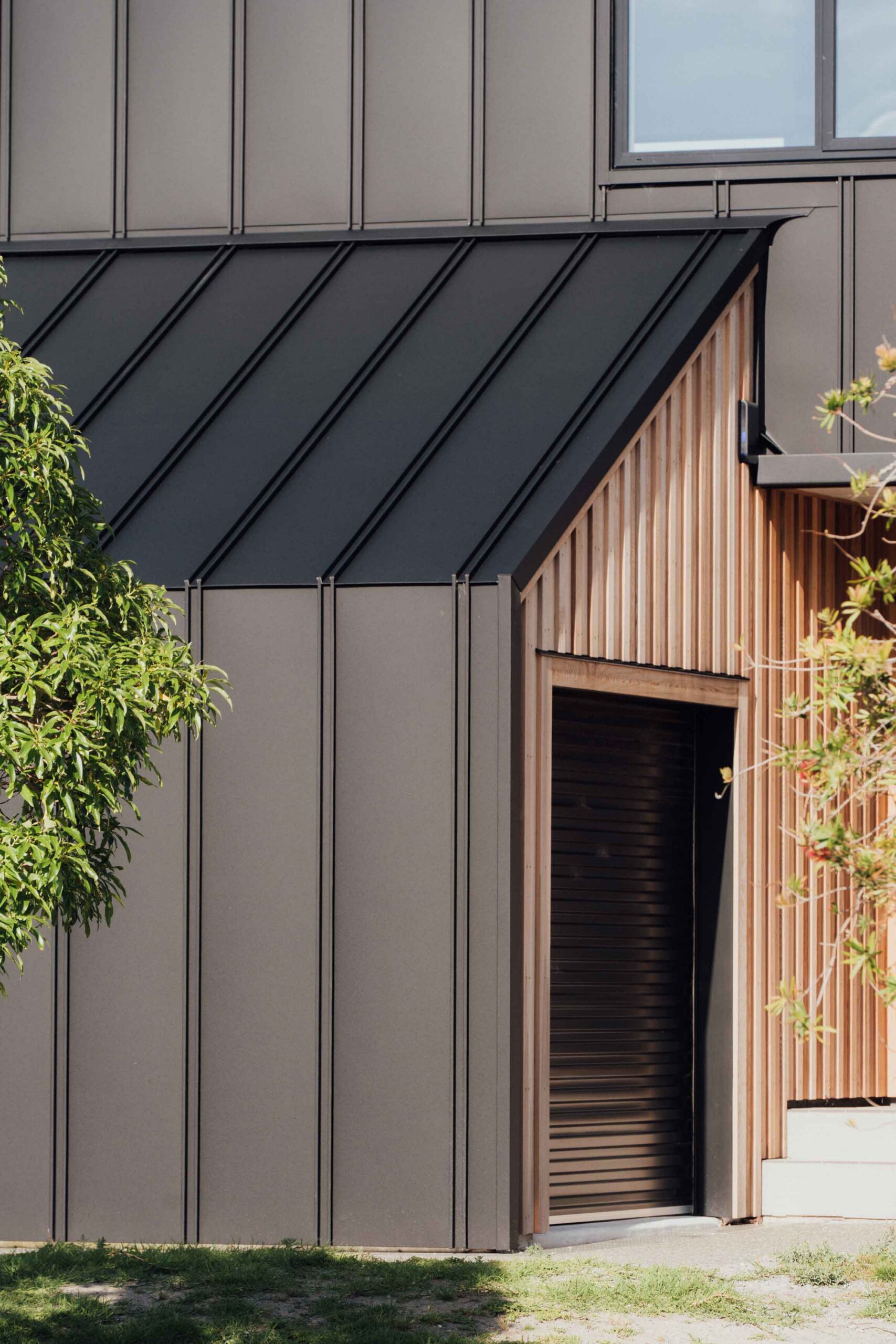

Standing Seam is a timeless cladding solution known for its clean architectural lines, flexibility, and long-lasting performance. Designed to suit both modern and traditional projects, this system allows for intricate detailing, curved surfaces, and seamless transitions across roofing and wall applications. Engineered for durability in demanding environments, Standing Seam systems can also be specified to meet high wind-load requirements, including cyclonic conditions.
Applications
- Roofing
- Wall cladding and façades
- Soffits and feature detailing
Key Features
- Rib heights available from 25mm to 38mm
- Panel widths typically ranging between 100mm and 530mm
- Suitable for convex, concave, curved, and tapered designs
- Enables continuous seam detailing from roof to wall
- Available in both cross-seamed and long-length panel configurations
- Panels can be installed vertically, horizontally, or diagonally for greater design flexibility
System Construction
- Plywood substrate fixed to battens or continuous structural framing at 600mm centres
- Breathable waterproof membrane installed beneath panels for moisture protection
- Stainless steel fixed and sliding clips positioned at maximum 300mm centres
- For high wind-zone or cyclonic-rated applications, clip spacing may be reduced to maximum 150mm centres for additional structural performance
